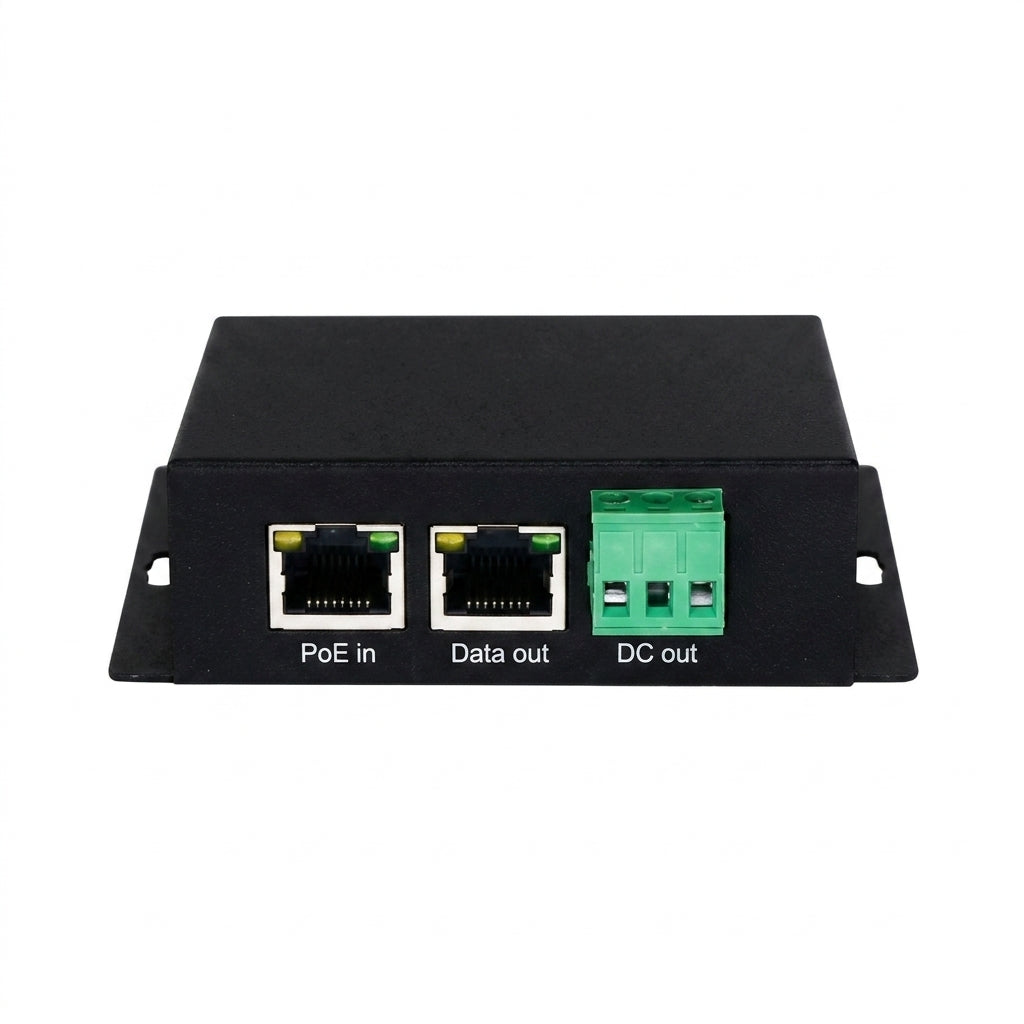

2.5G PoE Splitter 30/60/90W — Wall-mount, Isolated Ports, 10/100/1000/2500 Mbps

Overview

This industrial PoE splitter separates power and data from a single PoE input, providing one data output and a DC terminal-block output. It supports common powered devices such as network cameras and wireless access points, with selectable 30W, 60W or 90W models.

Power and compatibility

Compliant with IEEE 802.3af/at/bt, the unit adapts to 10/100/1000/2500 Mbps links. Output options include 12V at 2.5A, 12V at 5A (or optional 24V at 2.5A) and 12V at 7.5A, with efficiencies up to 96% depending on model.

Reliability and installation

Port isolation and circuit protection help safeguard attached equipment, and built‑in surge isolation (3kV/1.5kV) improves resilience. LED indicators show PoE input and network speed, and the compact wall‑mount enclosure (83×80×28mm, 0.16kg) operates from -40°C to +80°C.

• 2.5G/1G/100/10 Mbps adaptive networking
• Choose 30W, 60W or 90W DC output models
• Isolated PoE input for circuit protection
• Compact wall‑mount size 83×80×28mm
• IEEE 802.3af/at/bt compliant
